How to use the illumavein on FELINES
Only clamp vein in 1 location.  This will allow the vein
to enlarge and allow more blood to continuously fill
the vein.  If the vein is clamped in 2 locations, blood
flow is stopped and no blood droplet will form upon
puncturing.
CLAMPING THE VEIN
CORRECT
INCORRECT

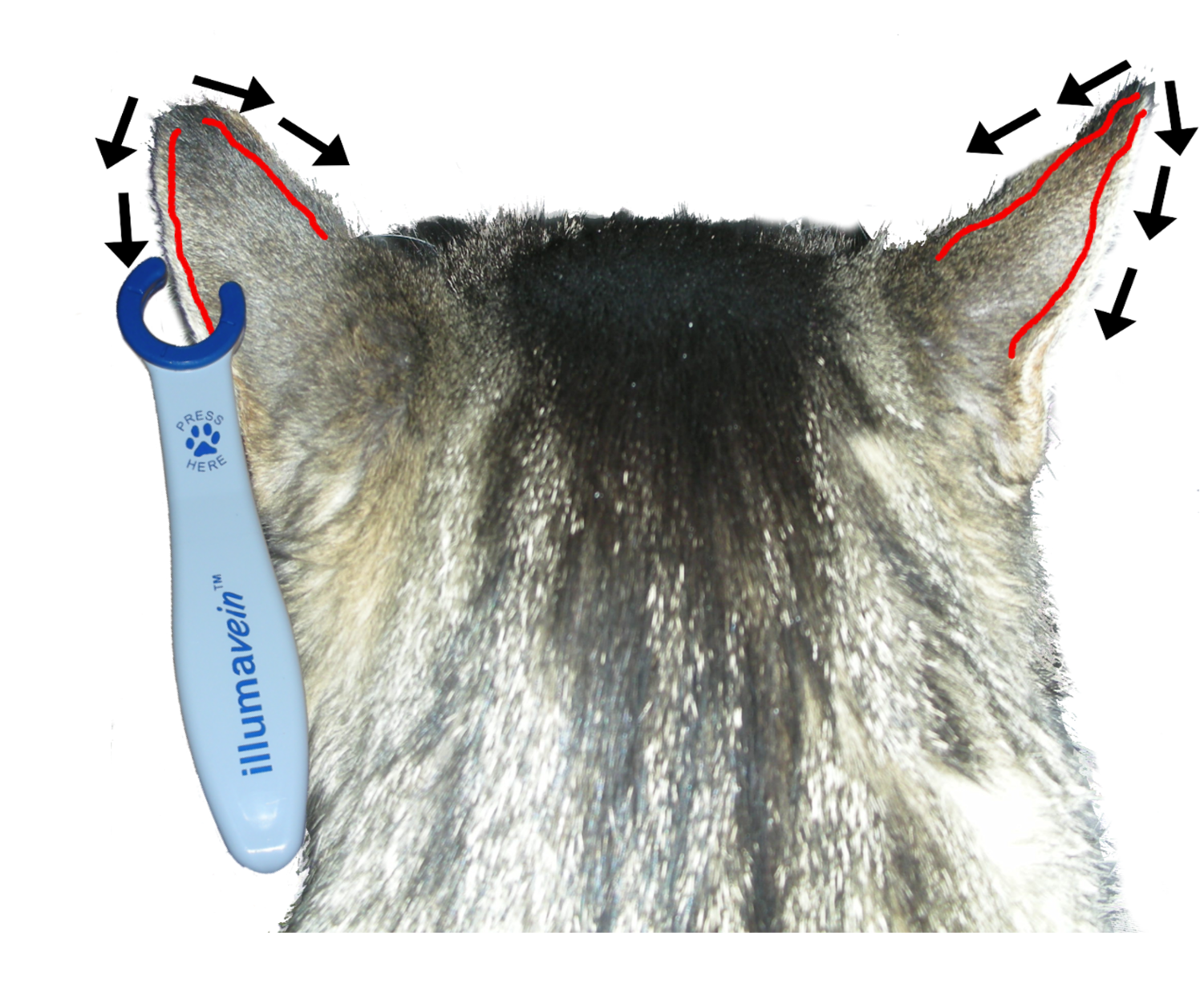

The vein is shown in red.
Vein is clamped in 1 location.

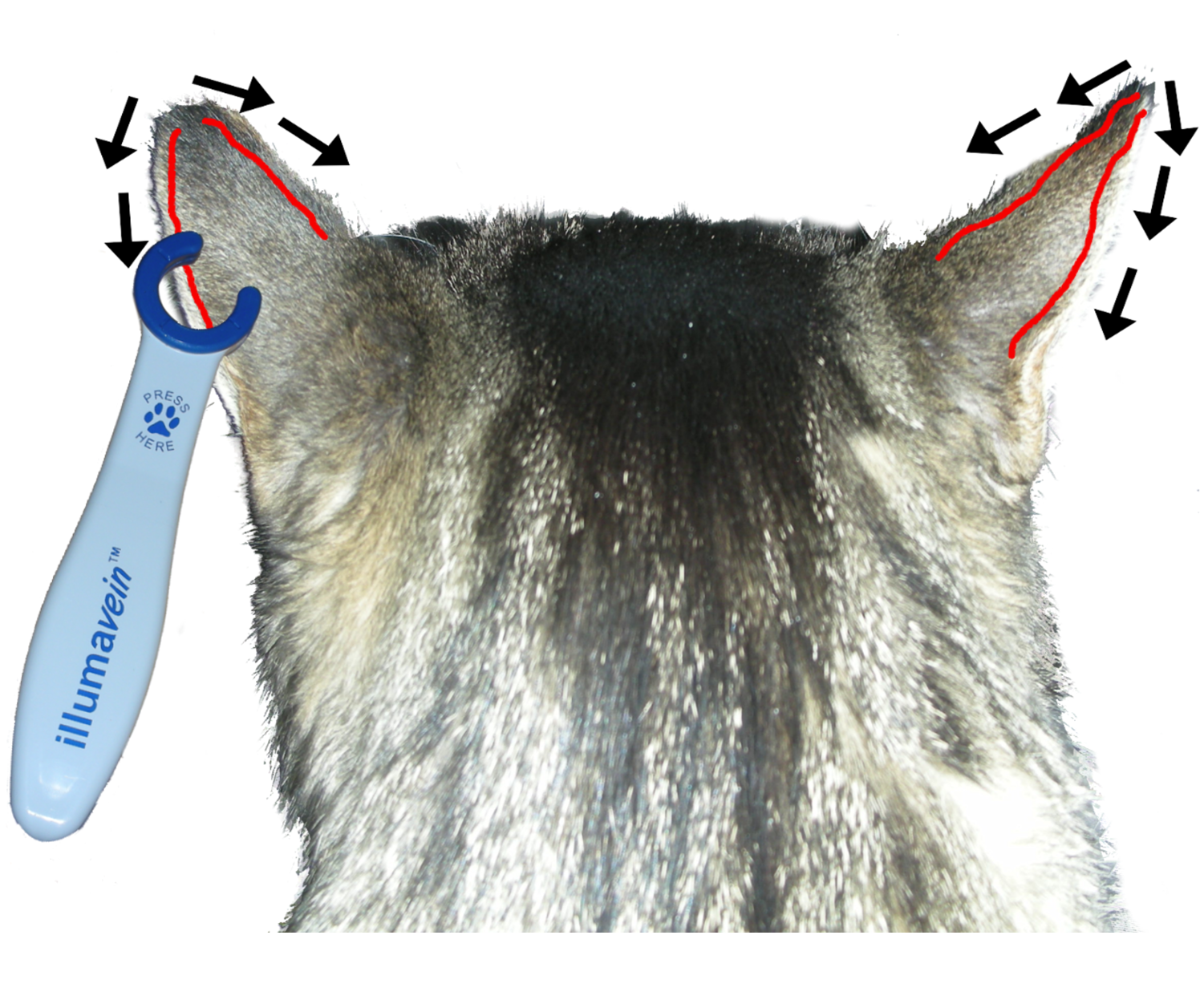

The vein is shown in red. Vein is clamped
in 2 locations.  (Vein is sectioned.)

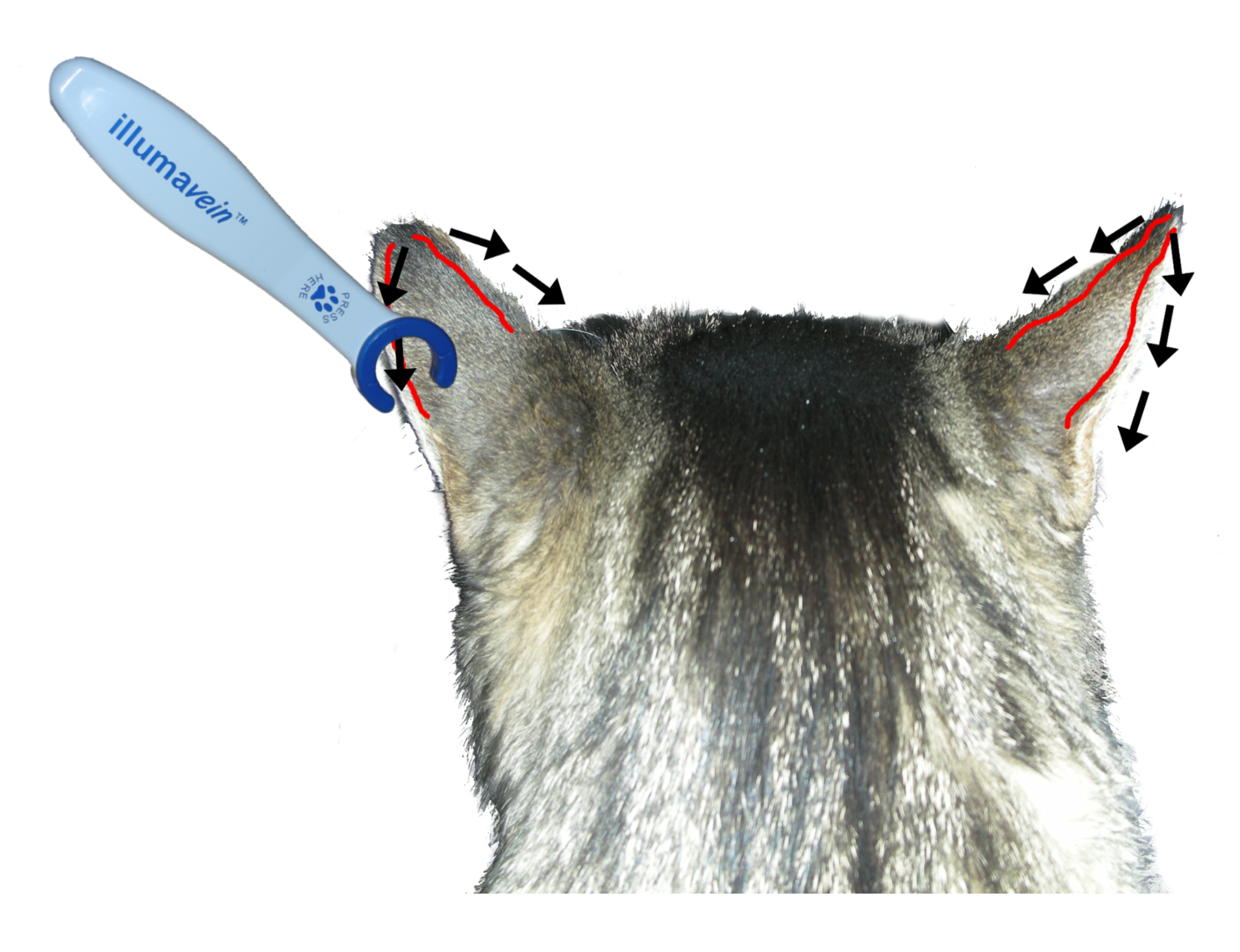

INCORRECT

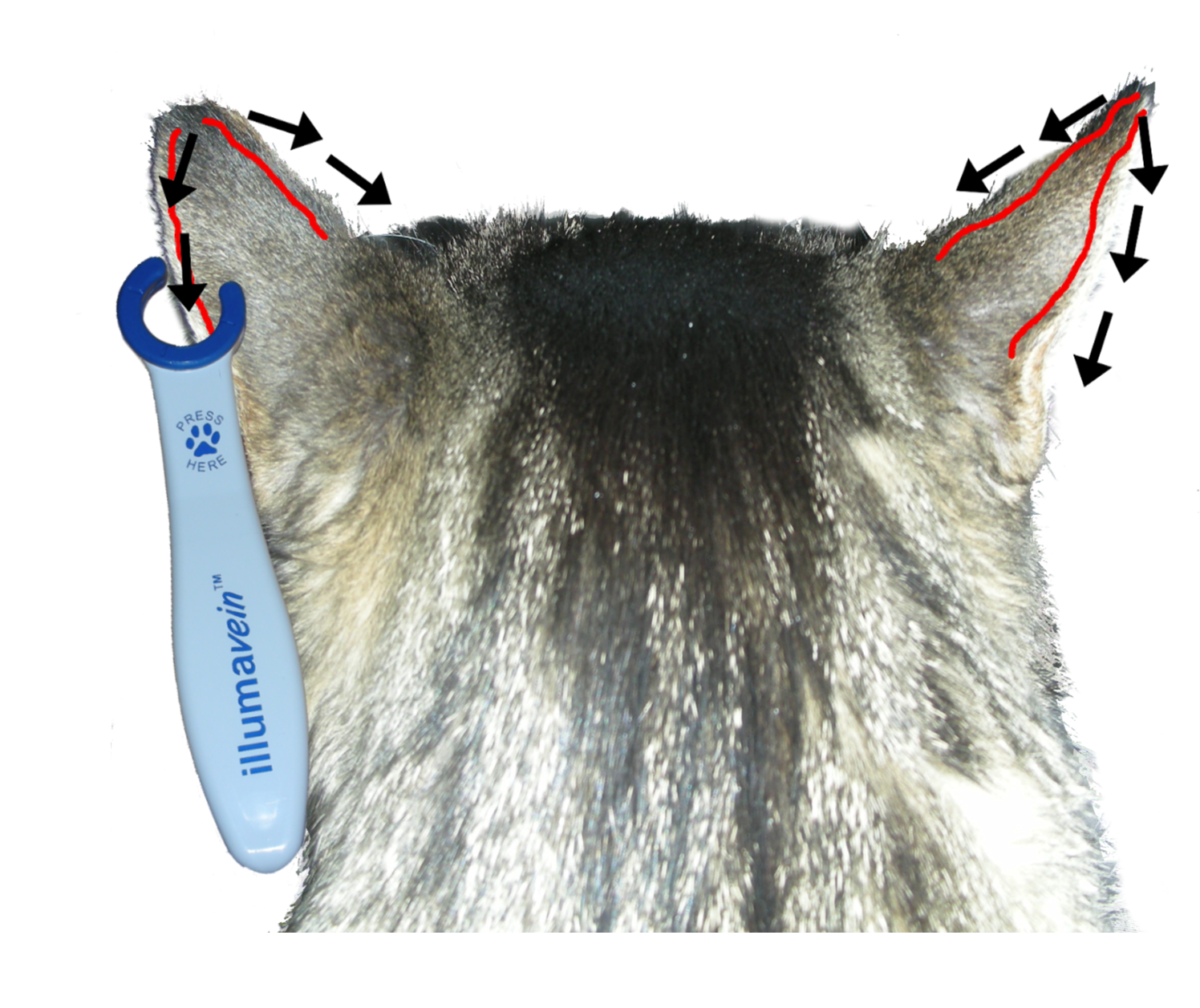

CORRECT
Blood is flowing away from device. (Arrows
puncture.)
Blood is flowing into the device. (Arrows
are pointing in and entering the area of
puncture.)

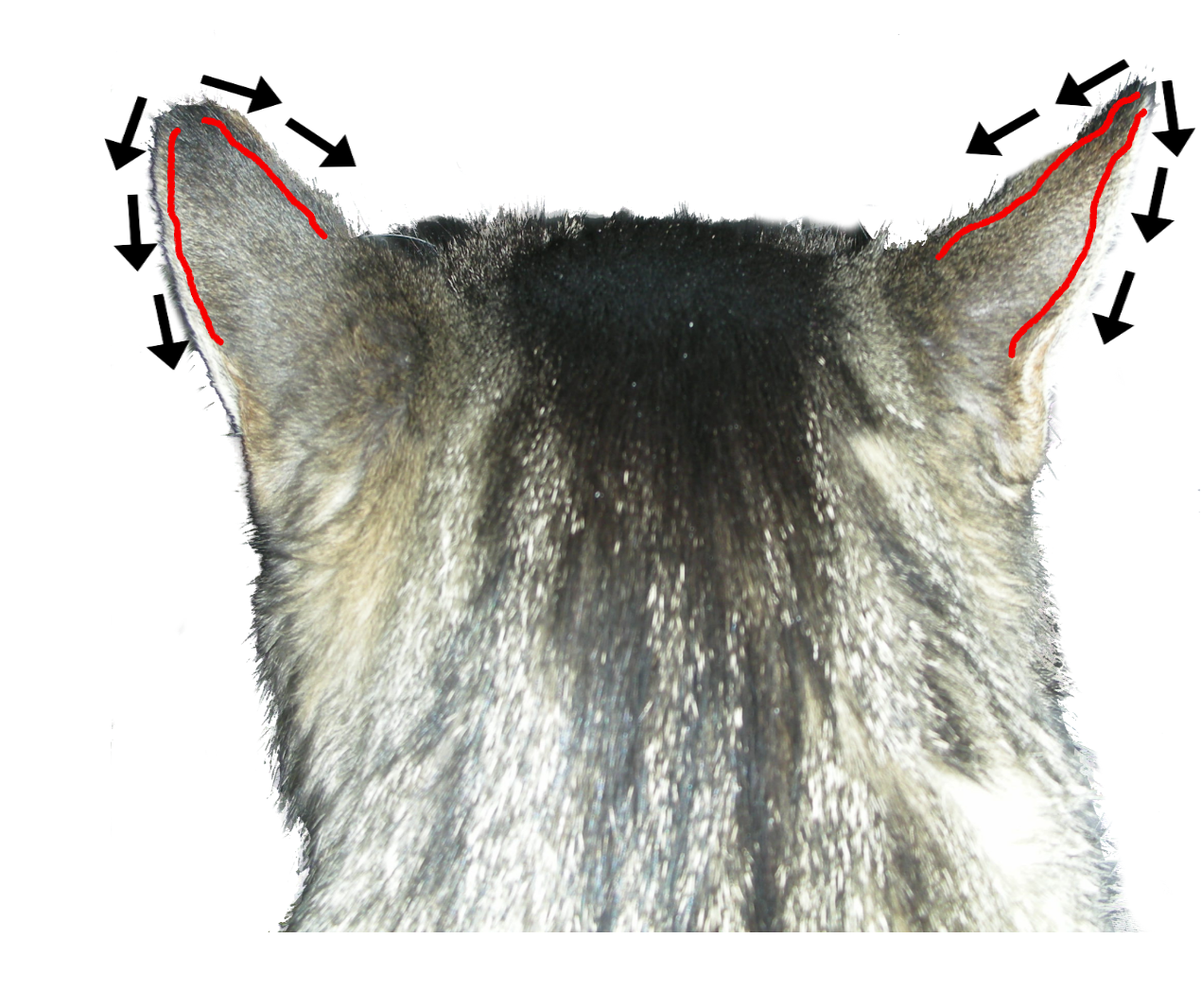

BLOOD FLOW:
Venous blood flow on ears begins at tip of ear and
travels back towards head.
It is important to place the device with the opening
of the rotating clamp so the blood is flowing "into"
the device (or so the arrows would be pointing in).
This will allow blood to flow into the vein and fill
with blood.
  1. Gather illumavein, lancet, meter and test strip.
  2. Get feline into comfortable and accessible position.
  3. Insert edge of ear in between arms of the illumavein.
  4. Rotate adjustable clamp so vein is clamped in 1 location. (see
    blood flow section for more information)
  5. Clamp down with gentle pressure to activate light.
  6. The light will illuminate the vein.
  7. Rotate adjustable clamp if necessary.
  8. While applying pressure, wait for a few seconds before
    puncturing.  This will allow vein to enlarge with blood.
  9. Puncture vein with lancet.
  10. Let blood accumulate into droplet and collect into test strip.
  11. Release clamp.
